March 29, 2021Cable Protection Slab (Single Hook)
Product Description

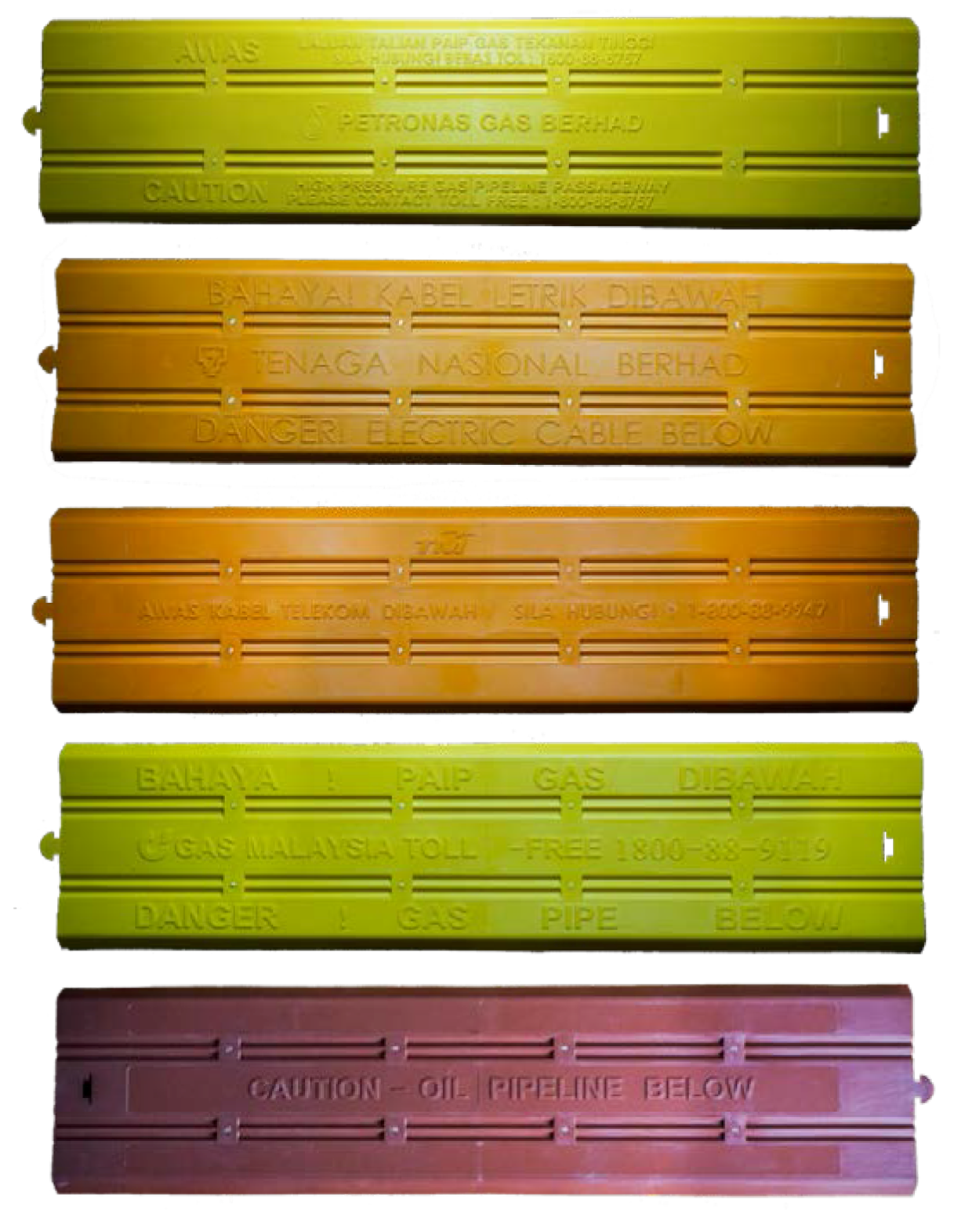

Cable Slab also known as Cable Tiles, Cable Covers, Cover Plate or Cover Tape are used as visual warning indicator for cable laid underground, while at the same time provides mechanical protection for underground laid cables in the event of excavation works. The cable slabs are buried underground and slightly above the underground cables.
Our Cable Slabs are manufactured from specially formulated high quality engineered materials to provide the highest impact and tensile strength for the protection of underground cable or piping.
It's ultimate interlocking linkage system will ensure the retention of the protection chain even under severe earth movement or impact.
| Item Code | Size | Colour |
|---|---|---|
| DSSB-CSAP-100C-1 | 100mm (W) x 1000mm(L) x 2.0mm(T) | Customise |
| DSSB-CSAP-150G-1 | 150mm (W) x 1000mm(L) x 2.0mm(T) | Green |
| DSSB-CSAP-200Y-1 | 200mm (W) x 1000mm(L) x 2.0mm(T) | Yellow |
| DSSB-CSAP250Y-1GSM | 250mm (W) x 1000mm (L) x 2.0mm (T) | Yellow |
| DSSB-CSAP250O-1 | 250mm(W) x 1000mm (L) x 2.0mm (T) | Orange |
| DSSB-CSAP250G-1 | 250mm(W) x 1000mm (L) x 2.0mm (T) | Green |
| 250mm width slab available in 2.0mm, 4.6mm and 6.0mm Thickness. Other size/colour please call for enquiry. |
||
