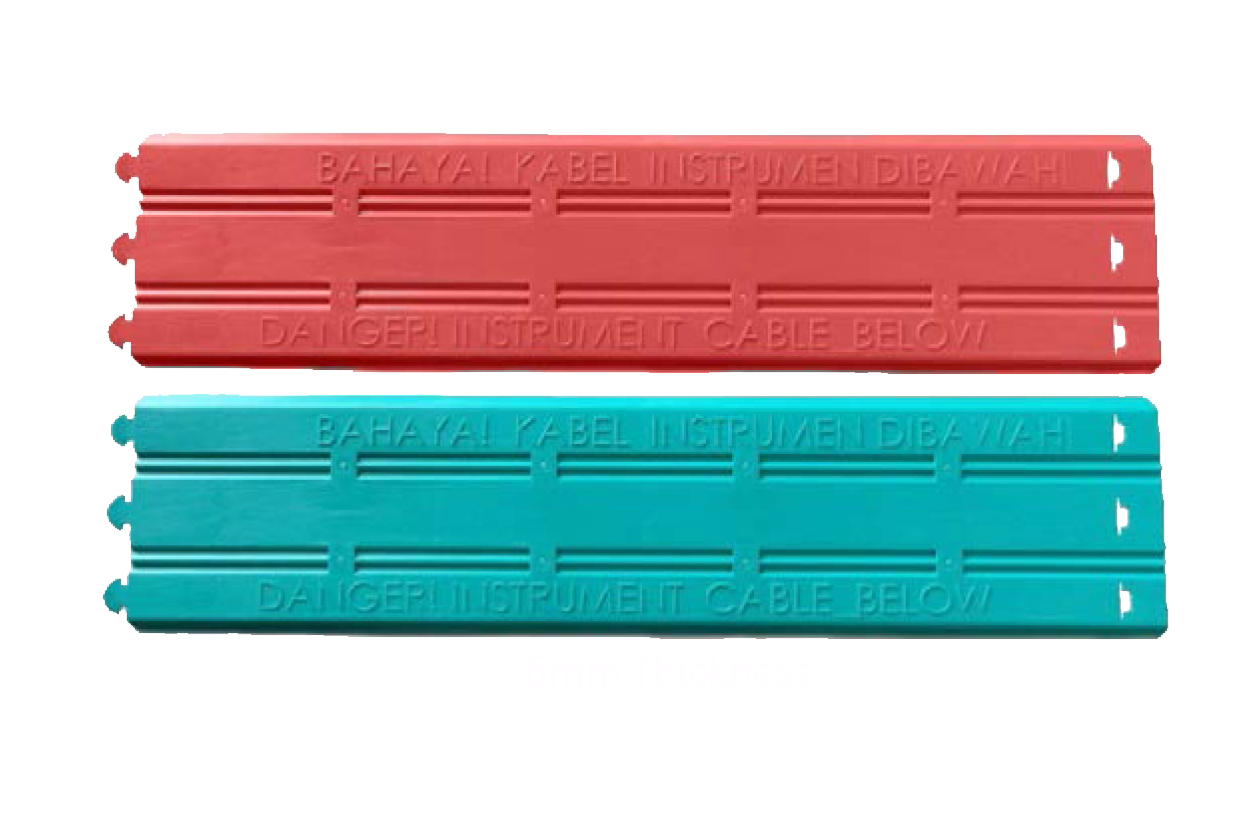

Cable Protection Slab (Triple Hook)



Product Description

Cable Slab also known as Cable Tiles, Cable Covers, Cover Plate or Cover Tape are used as visual warning indicator for cable laid underground, while at the same time provides mechanical protection for underground laid cables in the event of excavation works. The cable slabs are buried underground and slightly above the underground cables.

Our Cable Slabs are manufactured from specially formulated high quality engineered materials to provide the highest impact and tensile strength for the protection of underground cable or piping.

It's ultimate interlocking linkage system will ensure the retention of the protection chain even under severe earth movement or impact.

Item Code Size Colour
DSSB-CSAP250Y-3-6 250mm (W) x 1000mm (L) x 6.0mm (T) Yellow
DSSB-CSAP250O-3-6 250mm (W) x 1000mm (L) x 6.0mm (T) Orange
DSSB-CSAP250G-3-6 250mm (W) x 1000mm (L) x 6.0mm (T) Green
DSSB-CSAP-250C-3-6 250mm (W) x 1000mm (L) x 6.0mm (T) Customize
DSSB-CSAP-250O-3-2 250mm (W) x 1000mm (L) x 2.0mm (T) Orange
DSSB-CSAP-250G-3-2 250mm (W) x 1000mm (L) x 2.0mm (T) Green
DSSB-CSAP-250Y-3-2 250mm (W) x 1000mm (L) x 2.0mm (T) Yellow
DSSB-CSAP-250R-3-2 250mm (W) x 1000mm (L) x 2.0mm (T) Red
Other size/colour please call for enquiry
