Concrete Cable Slab



Product Description

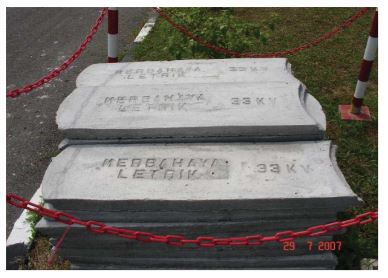

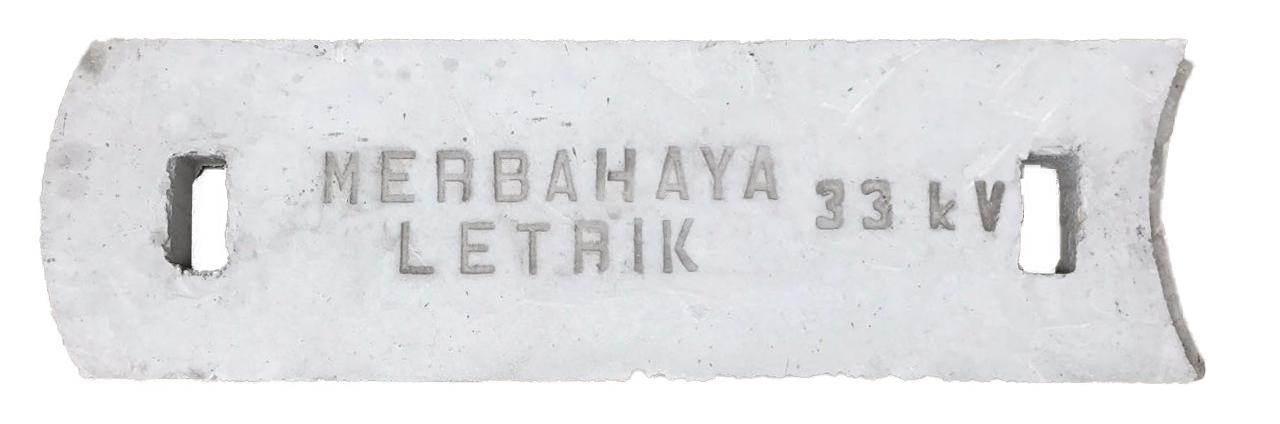

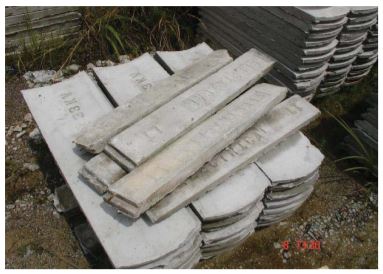

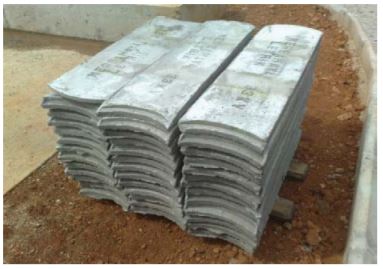

Cable Protective reinforced concrete slabs shall be laid to cover the full width of the trench on top of the first sand filling. The Concrete Cable Slabs are installed extensively throughout the utility industries to provide a pre-warning sign to site personnel working or excavating near underground pipes and electrical cables. They also act as physical protection barrier against accidental damage to buried low and high voltage cables eliminating costly repairs and jointing. The concrete cable slabs are impressed with ''MERBAHAYA LETRIK 33kV'' or other equivalent wordings. They should be arranged for interlocking successively one with the other both vertically and laterally.


Item Code Size Approx. Weight (kg)
DSSB-CSM-CCS150C 150(W) x 1000(L) x 50(T) 15kg
DSSB-CSM-CCS300CC 300(W) x 1000(L) x 50(T) 36kg
DSSB-CSM-CCS150C 150(W) x 1000(L) x 50(T) 15kg
DSSB-CSM-CCS300CCH 300(W) x 1000(L) x 50(T) 30kg
DSSB-CSM-CCS300C 300(W) x 600(L) x 50(T) 22kg
DSSB-CSM-CCS280C 280(W) x 900(L) x 50(T) 29kg
DSSB-CSM-CCS345C 345(W) x 840(L) x 50(T) 27kg
DSSB-CSM-CCS150C 150(W) x 900(L) x 50(T) 14kg
DSSB-CSM-CCS350C 350(W) x 870(L) x 65(T) 39kg
DSSB-CSM-CCS150C 150(W) x 900(L) x 50(T) 13kg
DSSB-CSM-CCS150C 150(W) x 900(L) x 50(T) 13kg
Wording : MERBAHAYA LETRIK
***other wording are available upon request




March 21, 2021
Cable Protection Slab (Single Hook)
 Cable Slabs/Cover are used as visual warning indicators for cables laid underground, while at the same time provides mechanical protection for underground laid cables in the […]
March 21, 2021
Cable Protection Slab (Triple Hook)
  Cable Slabs/Cover are used as visual warning indicators for cables laid underground, while at the same time provides mechanical protection for underground laid cables in […]
March 21, 2021
Concrete Cable Slab
   Concrete cable slab/covers are installed extensively throughout the utility industries providing a warning to site personnel working or excavating in close proximity to electrical cables. […]
March 21, 2021
Hybrid Cable Slab

March 21, 2021
Concrete Cable Route Marker (Square)
   Concrete Route Marker are used at road, rail and river crossings to provide visible warning of the location of underground gas pipework.
