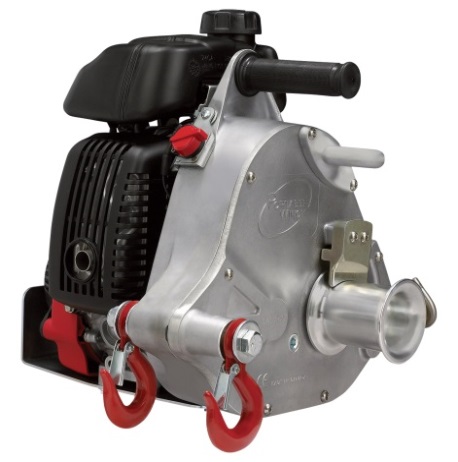

Portable Winch


Item Code
DSSB-CLA-PCW5000



Typical Applications:
  • Pull electrical cables through conduits
  • Hoist constructions materials or electrical transformers.
  • Pull electrical cables on cable rollers.

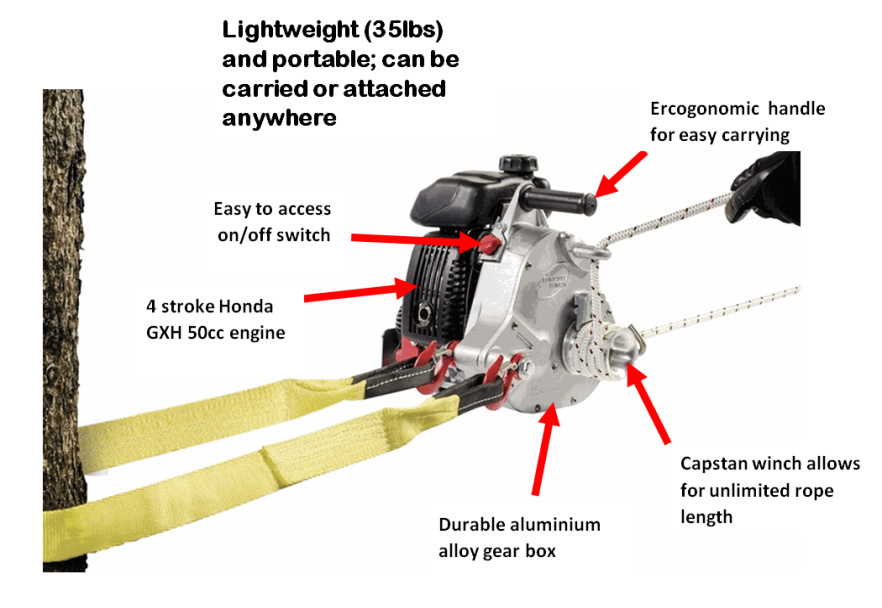

Winch Advantages:
  • Powerful - up to 2 tons of pulling power with snatch block.
  • Lightweight - weights only 16 Kg (35 lb).
  • Fast - up to 4 times faster than electric winches.
  • Quick attach - anchors to any tree, pole, stump ball or receive hitch.
  • Easy to use - anchor it and pull.
  • True power - 100% duty cycle. (vs 20% duty cycle for electric winches).
  • Constant pulling power - standard winches are rated for 1st layer pull.
  • Unlimited rope length
  • Safe - no kinks, pig tails, barbs on rope or whiplash using synthetic rope instead of wire rope.
  • Reliable - 4 stroke Honda engine - 50cc.



Specifications:

Pulling Capacity Single Line Double Line
1000 Kg (2200 lb)2000 Kg (4400 lb)
Gear Box Aluminium Alloy; Gear Ratio 110:1
Unit Weight 16 Kg (35 lb)
Engine 4-Stroke Honda GXH-50cc
Dimensions (Overall) 33 cm wide x 36 cm high x 38 cm deep
(13" x 14" x 15")
Rope
(low stretch double braided polyester)
minimum diameter: 10mm (3/8")
maximum diameter: 16mm (5/8")
Performance Standard DrumOptional Drum
57mm (2-1/4") 85mm (3-3/8")
12m/min (40ft/min) 18m/min (60ft/min)
1000 Kg (2200 lb) 635 Kg (1400 lb)
